IPG-kuitu- laserleikkauskone 3000 * 1500 4000W

IPG Kuitulaser leikkurin 3000 * 1500 4000W

Pikatiedot


Kunto: Uusi
Alkuperäpaikka: Anhui, Kiina (Manner)
Voltage:380V
Rated Power:500W-2200W
Dimension(L*W*H):5000*2600*1850mm
Weight:4000kg
Certification:high quality
Warranty:2 years
Leikkuumateriaali: Metalli ruostumatonta terästä oleva hiiliteräs alumiini
Control system:Shanghai Bochu
Fiber laser source:German IPG or Raycus
Leikkuupää: Raytools
servo motor:Janpan fuji
reducer:Janpan SHIMPO
Water cooled chiller:Keling
DC power:Taiwan Mingwei
solenoid valve:Taiwan AIRTAC
Oxygen proportional valve:Janpan SMC
Myynnin jälkeinen palvelu: Insinöörit ovat käytettävissä ulkomailla sijaitseviin huoltokoneisiin

Product Show

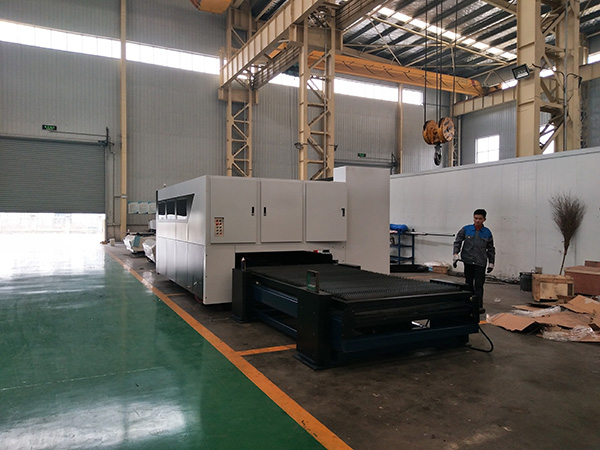

IPG Kuitulaser leikkurin 3000 * 1500 4000W

Products Features


1.Independent research and development, design, manufacture machine tool body, special processing technology, high precision machine tool, stable and reliable, long life

2.The main body of the shaft is welded, the structure of driving ramp, the aluminum casting beam of the upper shaft, the weight is light, the response is quick, and the dynamic performance is good

3.The lower shaft precision oblique tooth double drive structure, the upper shaft oblique tooth drive, the movement is stable and reliable

4.Good quality fiber laser, years of industrial application, long life, maintenance free, stable and reliable

5.High response, high precision imported servo motor

6.High precision laser cutting head, imported optical lens, fine focusing, convenient adjustment, accurate cutting

7.High response double closed loop control capacitance, low requirement to sheet, stable and reliable cutting quality

8.The operation of numerical control system is simple and easy to learn

9.Cutting graphics input a variety of formats, powerful graphics rendering and editing functions

10.Special cutting software, cutting process expert, data preservation call function

11.Proportional valve control gas flow, steady flow, good cutting surface quality

12.Automatic refueling system, machine running is more stable, long life

13.Craft dust extraction expert, ship - type dust extraction air flue, dust extraction effect is good

Machine tools


Performance parameter
3015
4020
6020

Fiber laser

Power(optional)
IPG:500W-4000W
Raycus:500W-4000W

Processing range

Size(L*W)
3000x1500mm
4000x2000mm
6000x2000mm
X-akselin reitti
1500mm
2000mm
2000mm
Y-akselin reitti
3000mm
4000mm
6000mm
Z-akselin reitti
100mm
100mm
100mm
Precision
X,Y axis positional accuracy
± 0,05 mm
± 0,05 mm
± 0,05 mm
X,Y axis repeat positional accuracy
± 0,03 mm
± 0,03 mm
± 0,03 mm

Nopeus

X,Y axis max positional accuracy
80 m / min
80 m / min
80 m / min
X,Y axis accelerated speed
0.8g
0.8g
0.8g

Power parameter

vaihe
                                                     3
Rated voltage
                                                 380V
Taajuus
                                                 50hz
Total power protection class
                                                  IP54

Weight and Size

Max weight table
500KG
750KG
1000KG
Työstökoneen paino
4.0T
6.0T
8.0T

Dimension

L:5000mm

W:2600mm
H:1850mm
L:6000mm
W:3100mm
H:1850mm
L:8200mm
W:3200mm
H:1850mm
