raycus IPG 750w 1000w 1500w 2000w cnc metallikuitu laserleikkauskone

raycus IPG 750w 1000w 1500w 2000w cnc metallikuitu laserleikkauskone

tekniset tiedot


Leikkuunopeus: 0-60000mm / min
Tuettu graafinen muoto: DWG, DXF
Sovellus: Laserleikkaus
Kunto: Uusi
Cutting Thickness:0-10mm
CNC tai Ei: Kyllä
Jäähdytystila: vesijäähdytys
Alkuperäpaikka: Anhui, Kiina (Manner)
Model Number:MKC-3015P
Sertifiointi: CE
Laser power:500W /800W/ 1000W / 1500W / 2600W
Function:Metal Cutting
Max cutting round pipe size:200mm diameter
Max cutting cube pipe size:150mm
Laser source:Maxphotonics
Position accuracy:±0.03mm
Takuu: 12 kuukautta
Myynnin jälkeinen palvelu: Insinöörit ovat käytettävissä ulkomailla sijaitseviin huoltokoneisiin



Tuotteen Kuvaus


Tuotesovellus

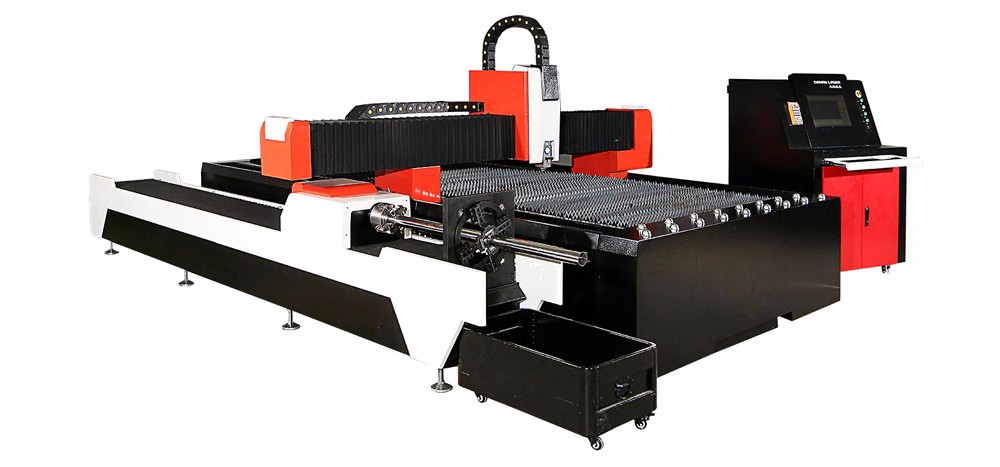

This type of Fiber Laser Cutting Machine is designed for cutting both metal sheet and pipes. Adopted the Taiwan famous screw guide, Yaskawa servo and drive. And the pipe diameter can up to 200mm. It can be customized according to different demands. The unique design with rotary auxiliaries can avoid the technical problems for cutting pipe and sheet at the same time.

Suitable for carbon steel ,mild steel,SS ,aluminum alloy plate and copper plate and other metal.It is suitable for medium and thin thickness material processing.

Applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, sheet metal processing, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.Raycus IPG 750w 1000w 1500w 2000w CNC Metal Fiber Laser Cutting Machine

Pipe laser cutting machine parameter
Machine model
smart KJG-1530D
Leikkuualue
3000 * 1500mm
Laser model
Fiber laser - 500W /800W /1000W /1500W/2500W
Laser-aallonpituus
1,070-1,080nm
Electro-light converting efficiency
25-30%
Suurin leikkauksen paksuus
0-20mm (depends on machin power and materials)
Pipe cutting diameter
1-200mm
Width of incision
0.1-0.2mm
X/Y/Z stroke
3025mm/1525mm/100mm
Paikan tarkkuus
± 0,03 mm
Repeat position accuracy
± 0,05 mm
Max. operating speed
60000mm / min
CNC control system
CypCut
Computer monitor
21.5"LCD
Max. kiihtyvyys
0.8g
Virtalähde
380V 50/60Hz (can be customized)
Working table max bearing
Approximate 800kg

Pääpiirteet


1. 500w, 800w, 1000w, 1500w, 2000w, 2500w IPG Maxphotonics Raycus fiber optic laser optional
2. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials etc
3. China professional manufactuers, best price and quality, can meet CE & FDA & ISO certificates
4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm
5. Metal sheet, round and square tube pipe fiber laser cutting machine, 1500*3000mm
6. Simple structure, very easy to install and maintain
